Micro Switch

Hinge R level type -

General-purpose Micro Switch that is applicable from 0.1A to the maximum of 21A

PartsFeature

Introduction of Micro Switch

Starion Micro Switch has stared its business in 1997 and now produces every process fully automatically, conducting an automatic inspection of the electrical/mechanical characteristics of every switch, and supplies Micro Switch to the world's famous home appliances companies as an important partnership enterprise in safety parts.
Starioni Micro Switch is a global company that insures the credibility of products under credibility testing facility in full set.

Features of Micro Switch

A small-sized general purpose basic switch that can be opened and shut from 0.1A to the maximum of 21A
It is a general purpose switch that is applicable for automation facility, electric equipment, industrial equipment, as well as serveral home appliances.
We have acquired global Safety and Quality Certification such as UL, cUL, CSA, VDE, SEMKO, CQC, KS, CE and more.
We can also produce with customer's specific order specification.

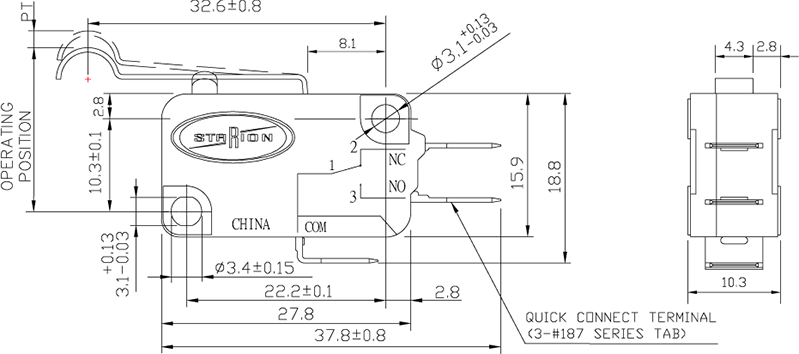

Outside view

Outside view

Model

SZM-V01-4FA-31

Rating

0.1A 125/250VAC 0.1A 30VDC

Service temperature

130℃

Electrical life

500,000 times

Mechanical life

10 million times

OF(Max)

60g

RF(Min)

6g

PT(Max)

4.0mm

OT(Min)

1.6mm

MD(Max)

1.5mm

OP

18.7±1.2mm

Contact type

SPDT

Contact resistance(Max)

50mΩ

Withstand voltage

1500V/minute

Insulation resistance

100MΩ↑

Terminal type

Solder#187 TAP
